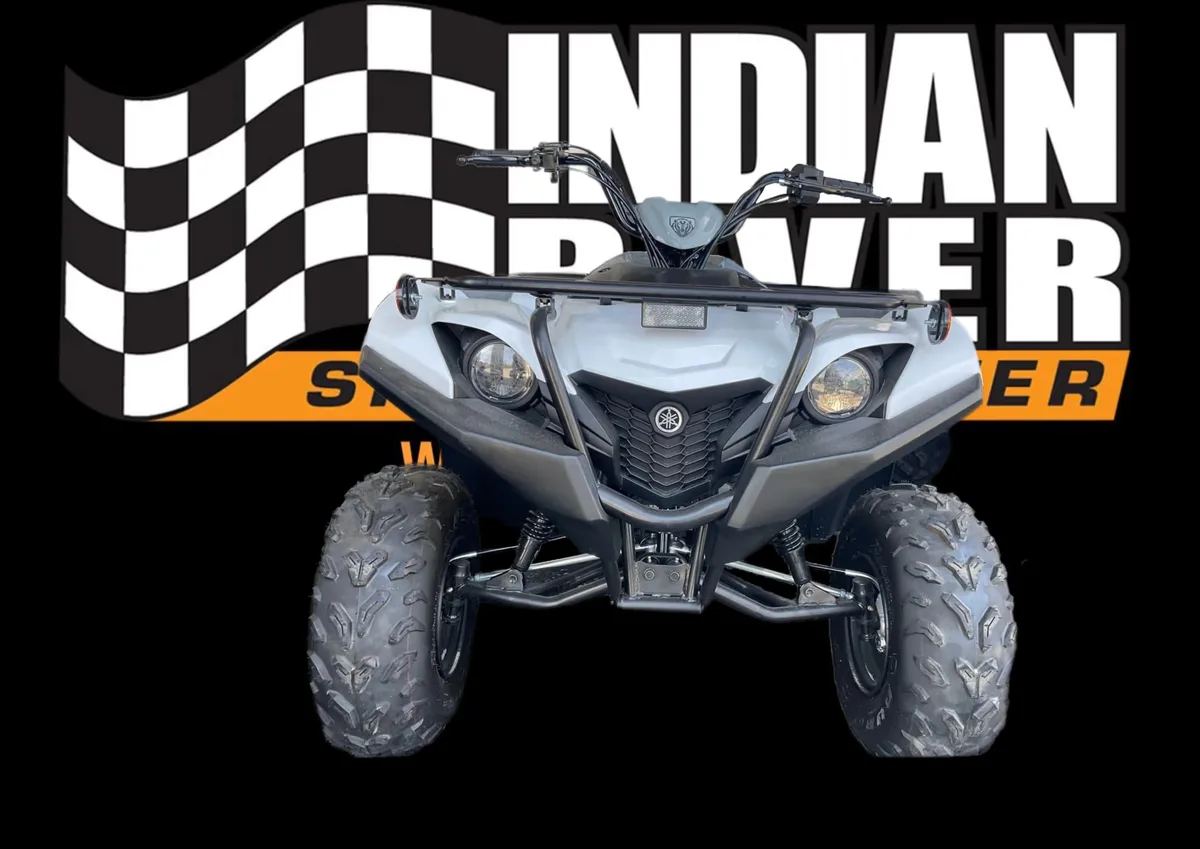

2024 YAMAHA GRIZZLY 90

Features

Capability


• ADVENTURE-READY CHASSIS: Compact A-arm front suspension is tuned for light steering and comfortable ride quality, offering 5 inches of travel. A swingarm set-up in the rear provides 5.7 inches of wheel travel, adding to the Grizzly 90's full-size look and feel.

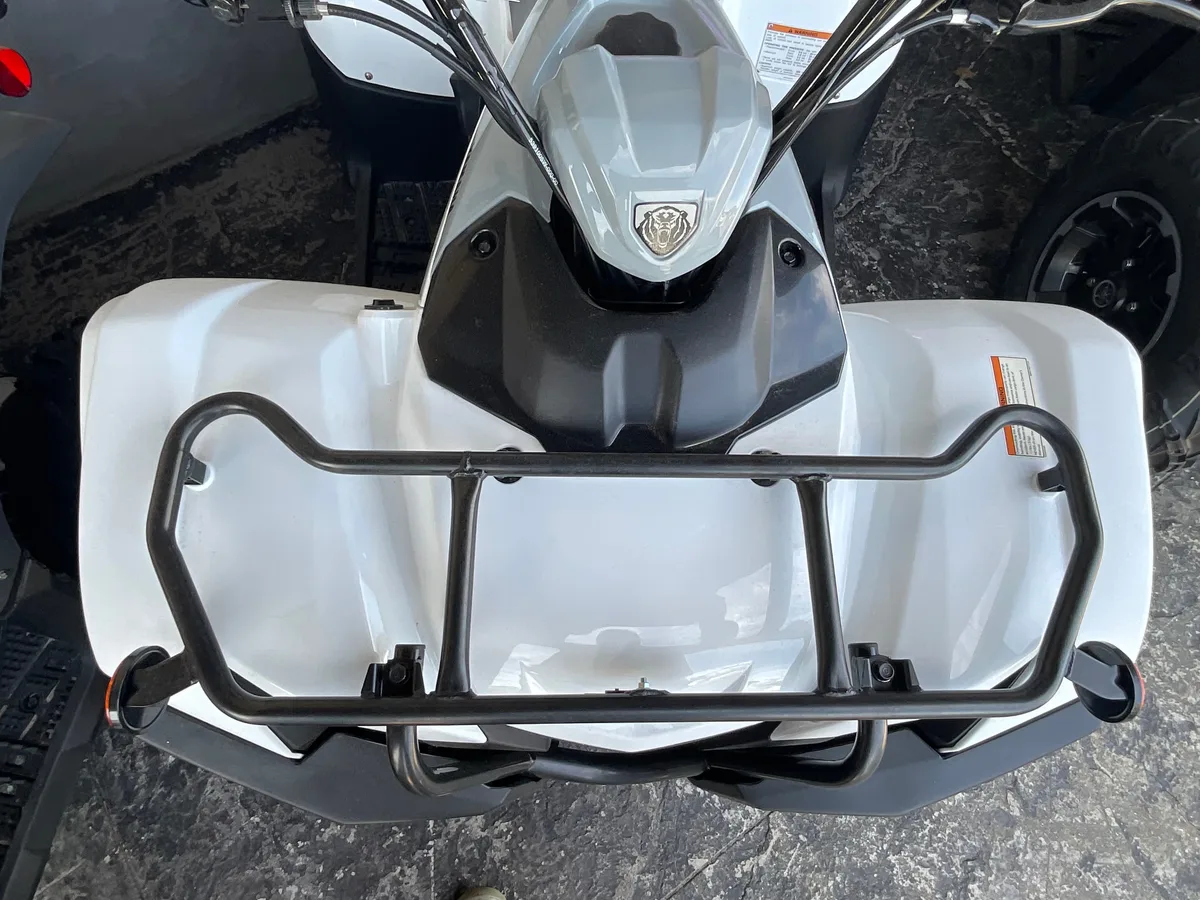

• INTEGRATED CARGO RACKS: Robust steal cargo racks front and rear give younger riders the ability to pack their own gear as they join the family on their next adventure.

• RENOWNED GRIZZLY TRACTION: Just like its off-road-proven big brothers, the Grizzly 90 features aggressive tires to maximize traction on any trail. The oversized 19-inch front tires and complementing 18-inch rear tires lend the compact machine an purposeful stance.

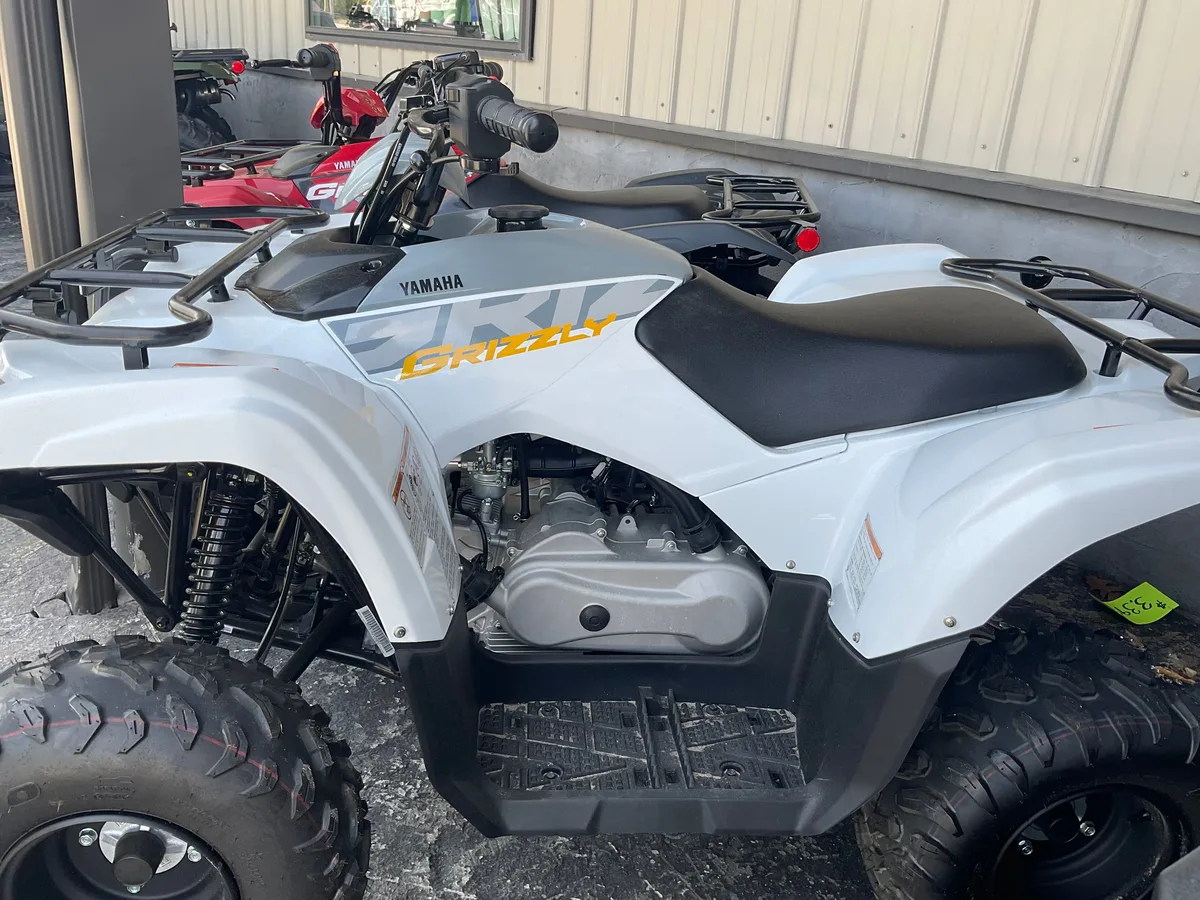

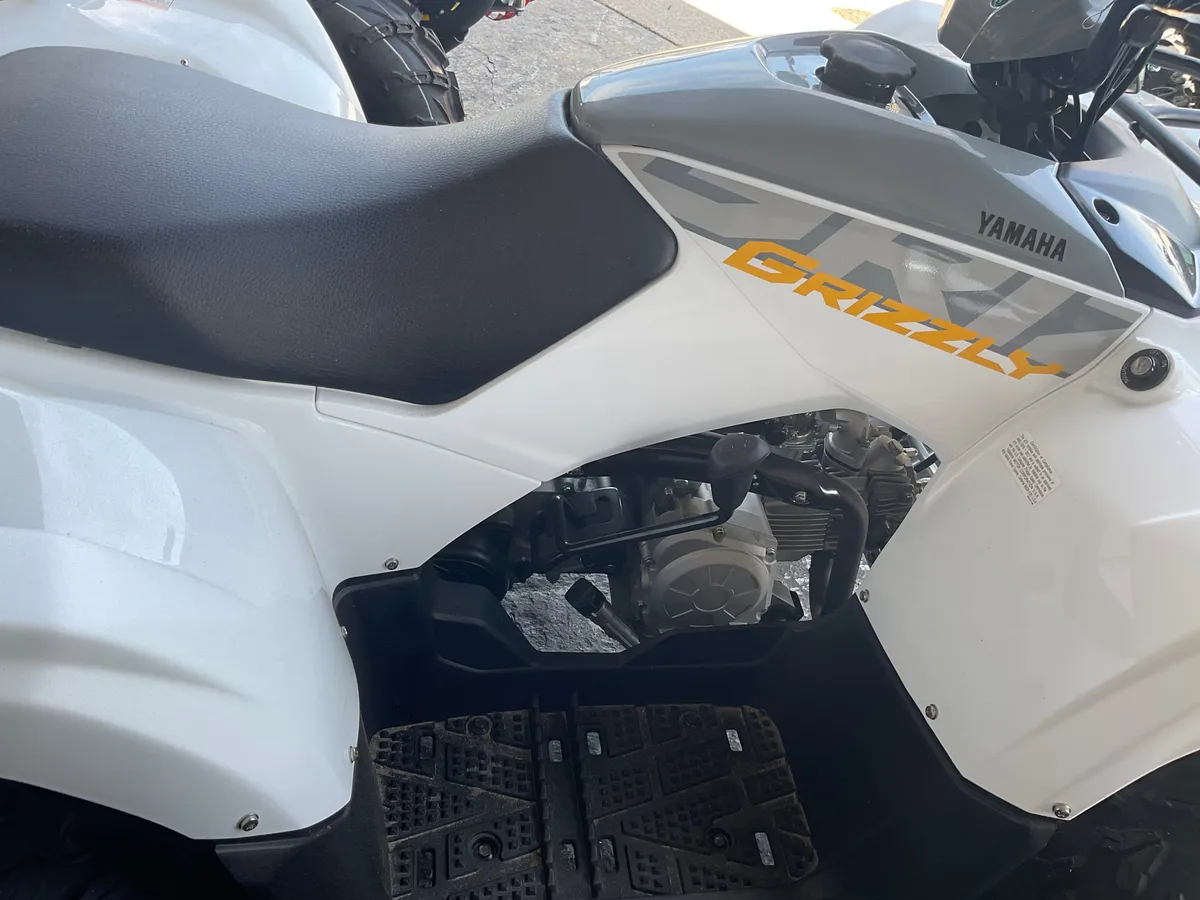

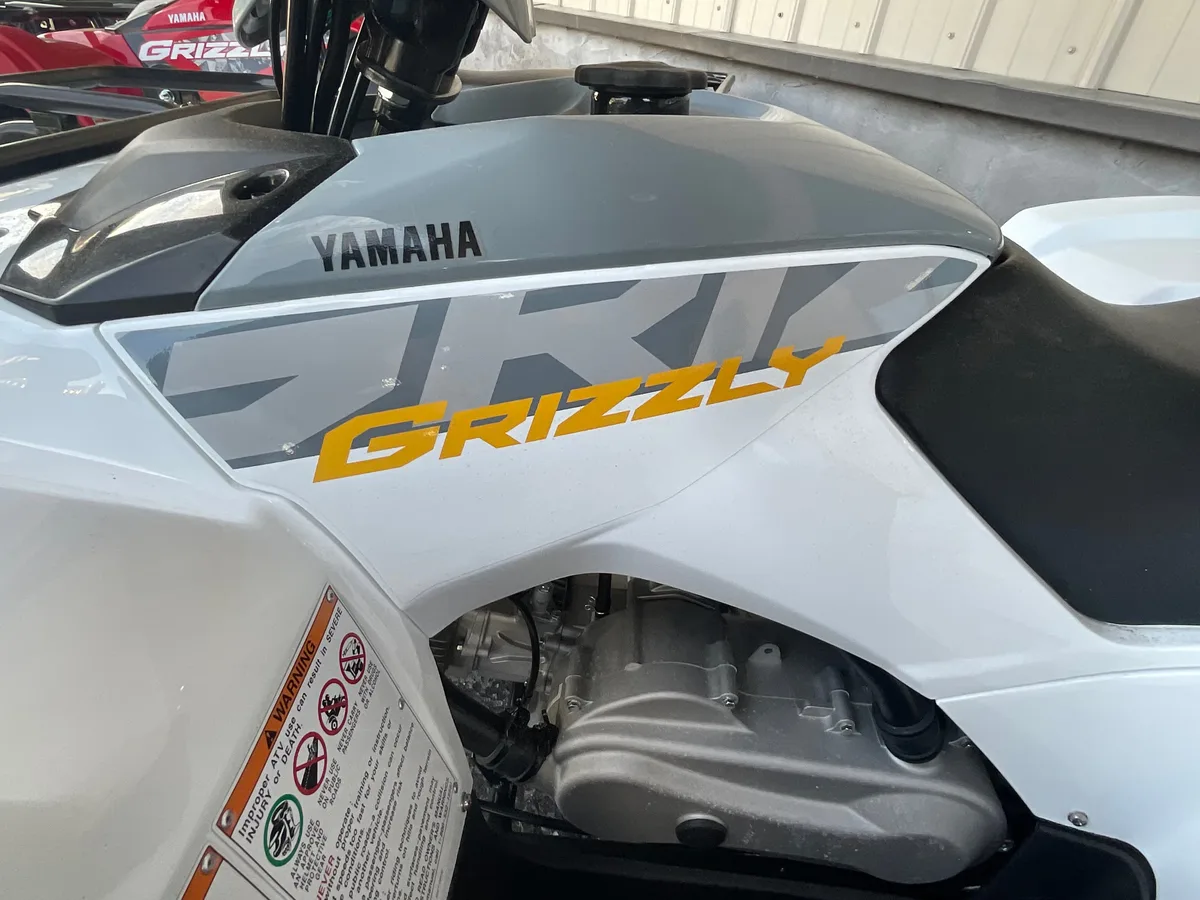

• ROBUST 90CC ENGINE: The Grizzly 90's four-stroke SOHC 90cc engine is tuned to develop excellent low- to mid-range performance. The engine utilizes proven wet-sump lubrication and is air-cooled for simplicity, performance and long service life.

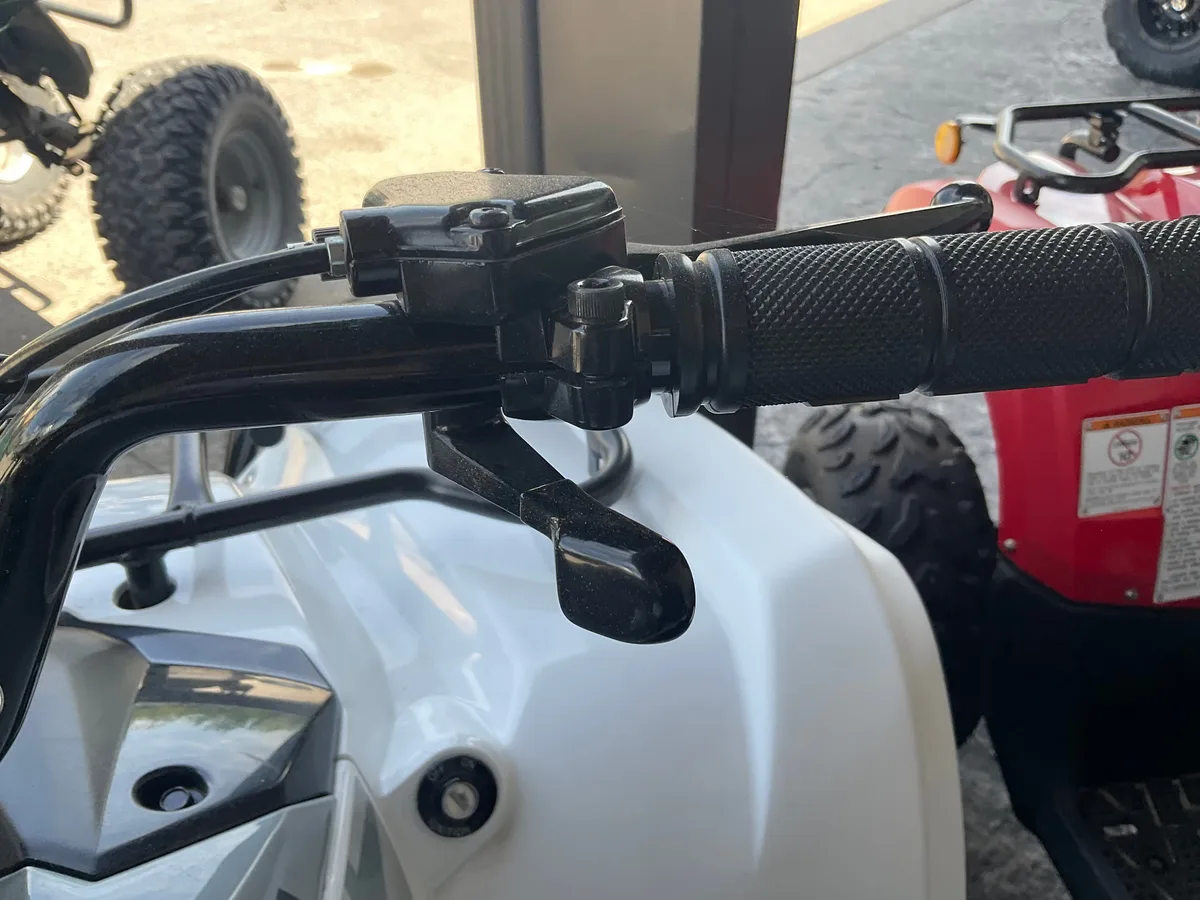

• SECURE STOPPING POWER: For reliable stopping power, three sealed drum brakes bring the Grizzly 90 to a quick halt. There's a handlebar-mounted parking brake too.


Comfort


• BIG MUD-DEFLECTING FENDERS: The Grizzly 90 boasts full-coverage fenders just like its Grizzly siblings, enhancing style and protecting the rider from mud and trail debris.

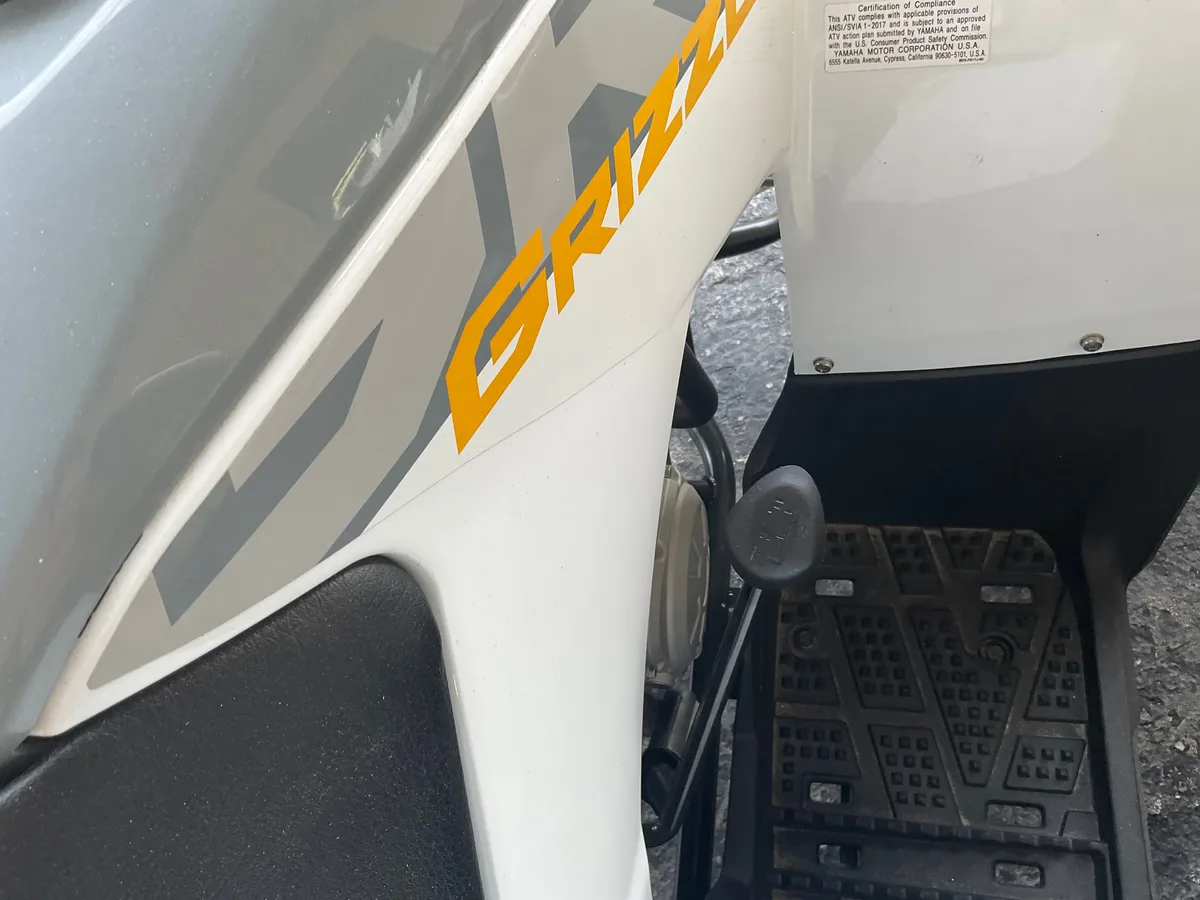

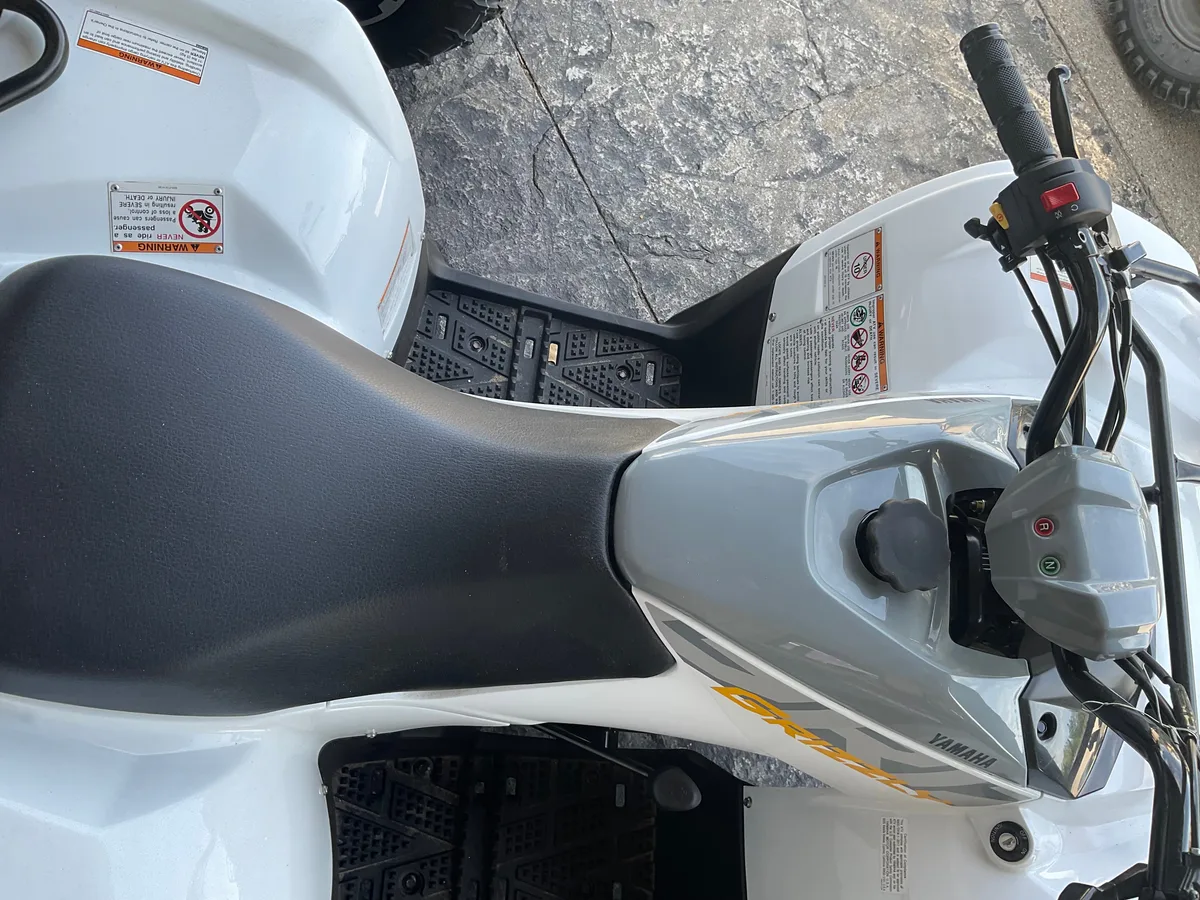

• COMFORTABLE ACCOMMODATIONS: The Grizzly 90 is designed to be comfortable for a wide variety of riders 10 and up. With its large, plush seat and wide floorboards, riders won't outgrow the machine as they build their off-road riding skills.


Confidence


• AUTOMATIC TRANSMISSION: Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, it's a feature entry-level riders particularly appreciate. Standard reverse simplifies maneuvering the Grizzly 90 in tight spots.

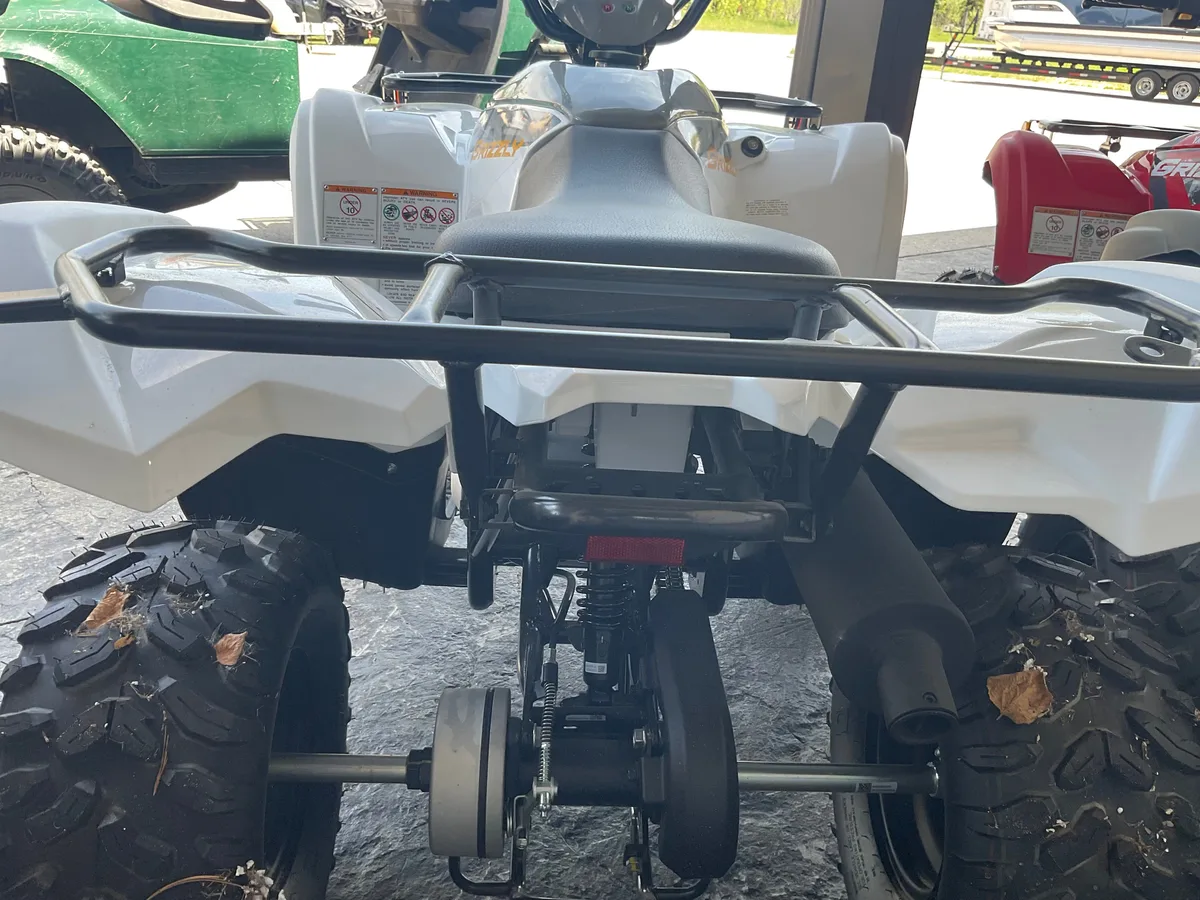

• COMPACT AND DURABLE DRIVETRAIN: Engine power is transferred to the rear wheels via a tried-and-true O-ring chain drive, running along a swingarm that's set at an optimized angle for superior rear shock performance.

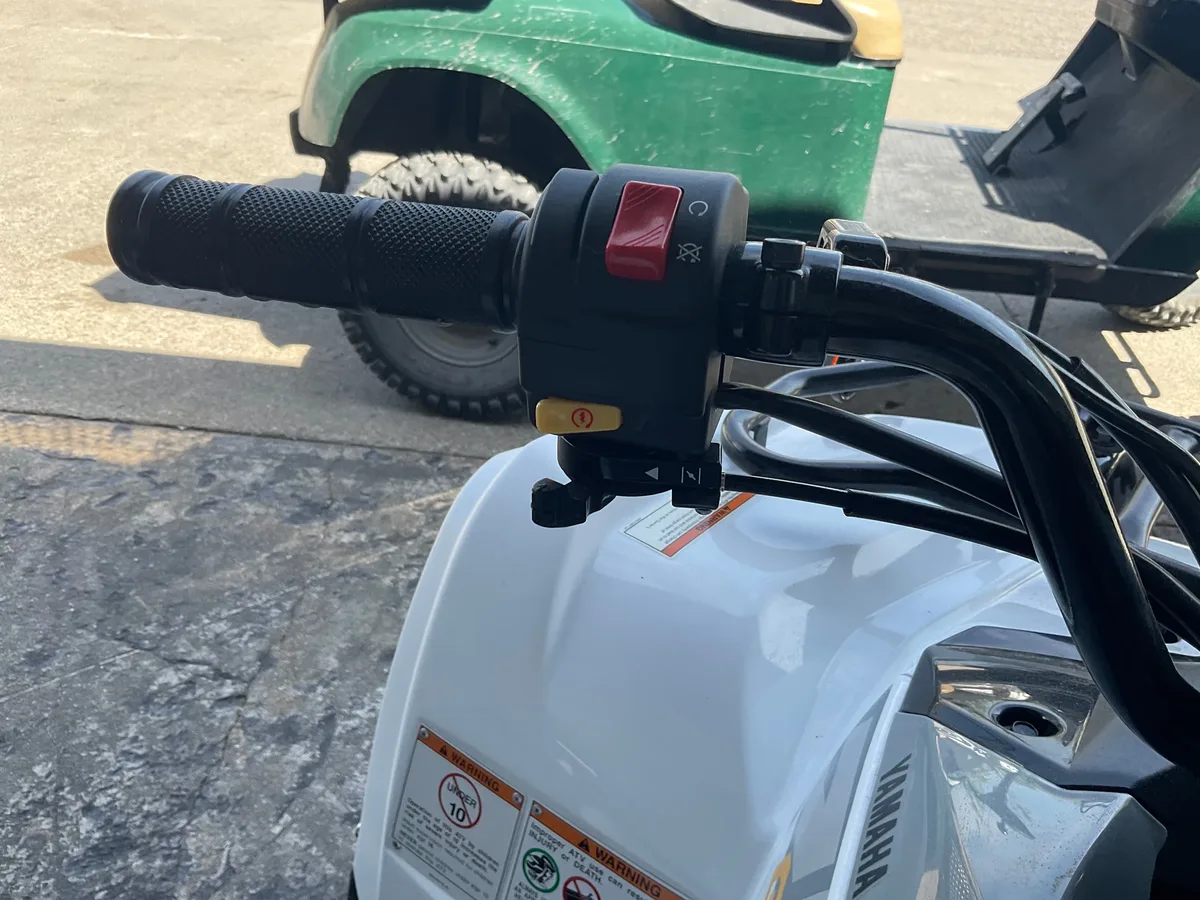

• ELECTRIC STARTER: Push-button electric starting comes standard. For additional peace of mind, an emergency kick starter is also provided in a storage spot under the seat.

• ENGINE LIMITER: To help young beginners grow into accomplished ATV riders, the Grizzly 90 includes both an electronic limiter and throttle limiter to tailor the engine's performance to the rider's advancing skill level.

• LOW MAINTENANCE DESIGN: Servicing is easy thanks to features like the tool-less quick-access air filter element.

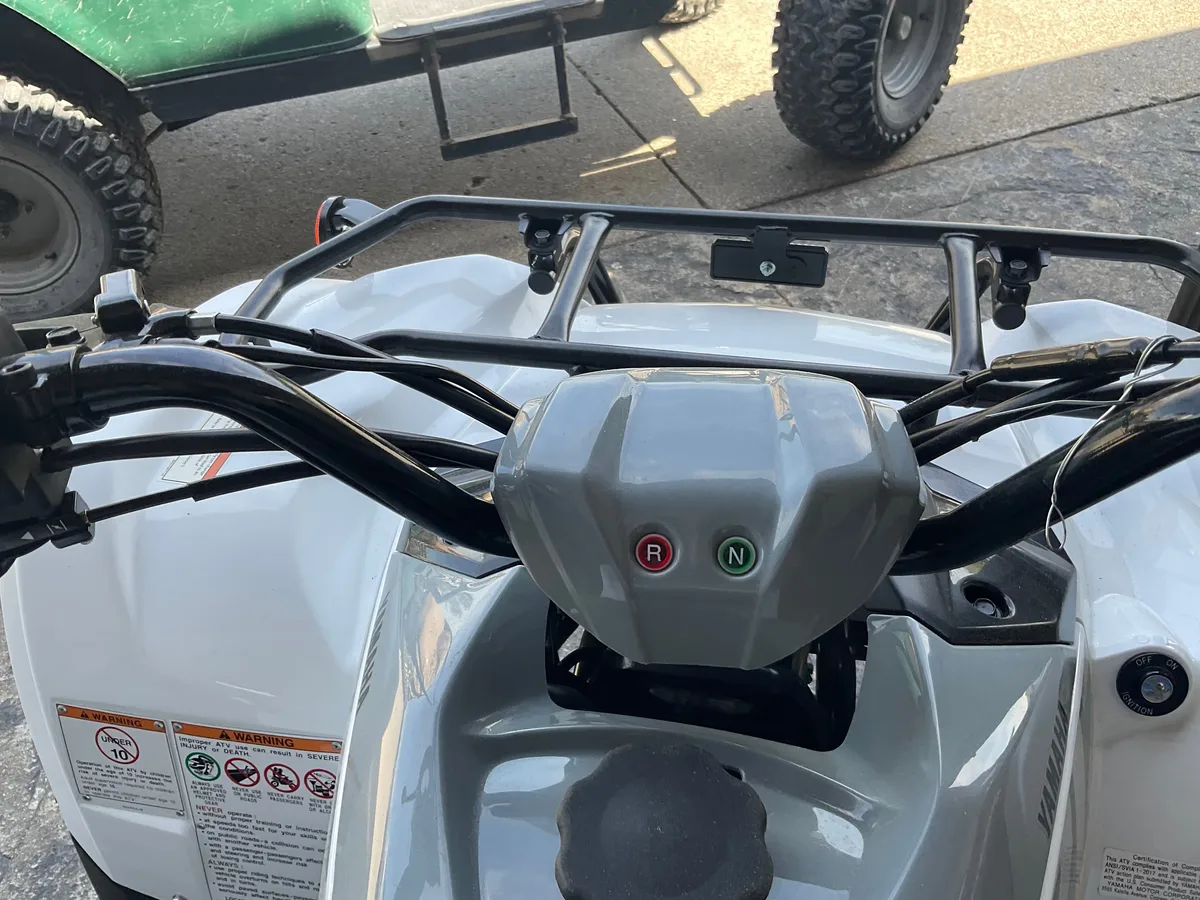

• MODERN, RELIABLE ELECTRONICS: The CDI system means reliable ignition performance, and a sealed maintenance free battery provides worry-free operation. Handlebar-mounted reserve and neutral indicators keep the rider informed in all situations.


Top Features


• COMFORTABLE CHASSIS: The ergonomics are designed to fit a wide range of riders 10 and up, while the Grizzly 90's tire and suspension package provide sure-footed traction and a comfortable ride in a wide variety of terrain.

• CONFIDENCE-INSPIRING 90CC ENGINE: The Grizzly 90 is built to bring maximum fun for young ATV riders ages 10 and up. The low-maintenance 90cc engine is tuned to deliver excellent low- to mid-range performance, while the fully automatic CVT transmission with reverse, gated shifter and electric start with back-up kickstart all come standard.

• REDUCED MAINTENANCE DESIGN: Durable, proven components keep servicing simple and affordable thanks to features like the tool-less quick-access air filter element.

• SCALED DOWN, NOT SCALED BACK: The Grizzly 90 takes cues from its top-performing full-size Grizzly siblings, but is designed specifically for younger riders just getting into the sport. The result is accessible, confidence-inspiring performance with Grizzly family style.


Specifications

General Information

Manufacturer

Yamaha

Model Year

2024

Model

Grizzly 90

Model Code

YFM09GYXRW

Color

White / Armor Gray

Brakes/Wheels/Tires

Brakes

Front - Dual drum

Rear - Drum

Tires

Front - AT19 x 7-8

Rear - AT18 x 9-8

Dimensions

Length

61.5 in.

Height

39.6

Width

40.6 in.

Weight

Wet - 308 lb. (Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.)

Ground Clearance

Maximum - 4.1 in.

Wheelbase

40.6 in.

Seat Height

28.7 in.

Drivetrain

Transmission

Continuously Variable Transmission; F, N, R

Drive System

2x4

Drive

Final - O-ring chain

Engine

Engine

SOHC 4-stroke; 2 valves

Cooling

Air

Displacement

90 cc

Bore x Stroke

1.9 x 2 in. (47 x 51.8 mm)

Compression Ratio

9.2:1

Carburetion

13 mm carburetor

Fuel Capacity

1.7 gal.

Operational

Suspension

Front - Single A-arm; 5 in. travel

Rear - Monoshock swingarm; 5.7 in. travel

Other

Warranty

6 month (limited factory)

‍
